Tools Explained

Our tools are manufactured in a wide variety of sizes, materials and types which should be specified at the time of ordering.

Explore

Handles Explained

Example

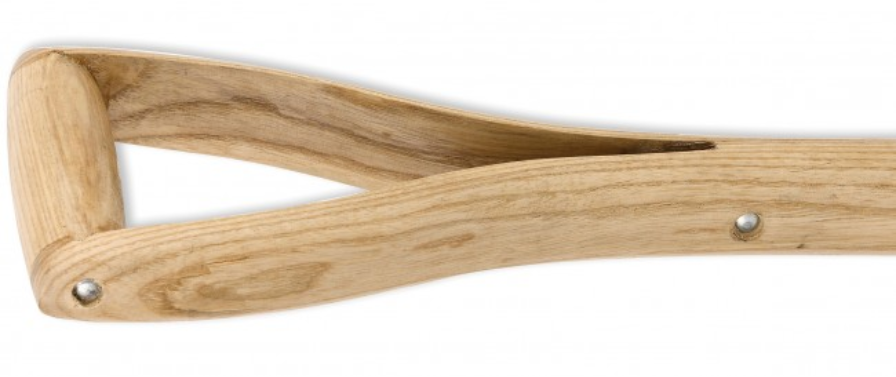

Split Wood YD

This Split Wood YD handle is made from a single piece of high quality ash and is primarily used within our garden range. All our Split Wood YD handles are lacquered as standard to give a traditional feel.

Handles

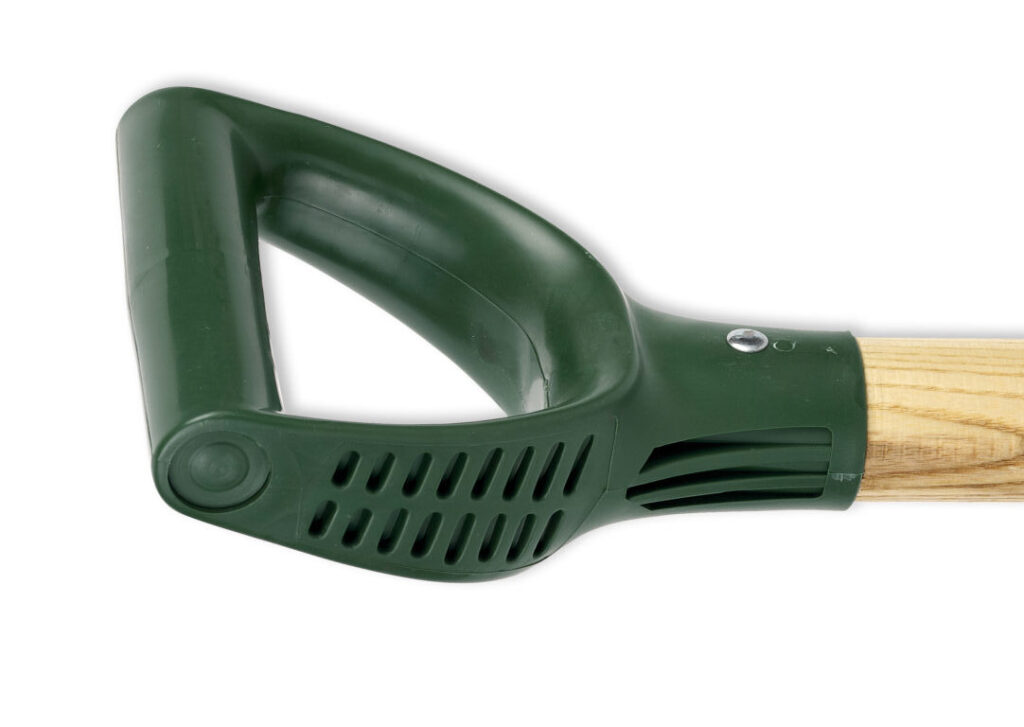

Ergonomic PYD

Moulded from a high impact polyproylene for increased comfort, the Ergonomic PYD helps to reduce strain on the hand and wrist by keeping the handle in a neutral position. This is used predominantly in our garden tool range.

Example

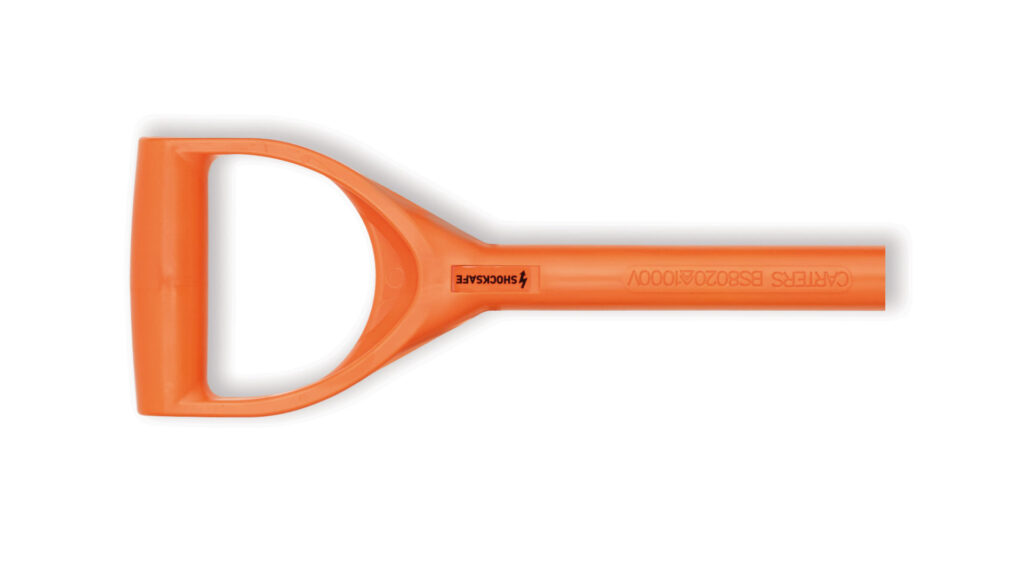

BS8020 Shocksafe Insulated YD

Shocksafe products provide full conformity to the exacting requirements to BS8020:2011. Double protection created by twin layers of sealed polymer sheathing moulded over the rigid fibreglass core. Uniquely numbered and individually certified providing full traceability, guaranteeing full conformity to live-cable working specifications.

Fibremax Pro

The fibreglass MYD handle is designed for extremely heavy duty industrial use. Chemically bonded into solid socket tools, these shafts are over 30% stronger than the all steel range of tools. Fibreglass shafts have excellent structural properties and will not warp or rust in extreme conditions.

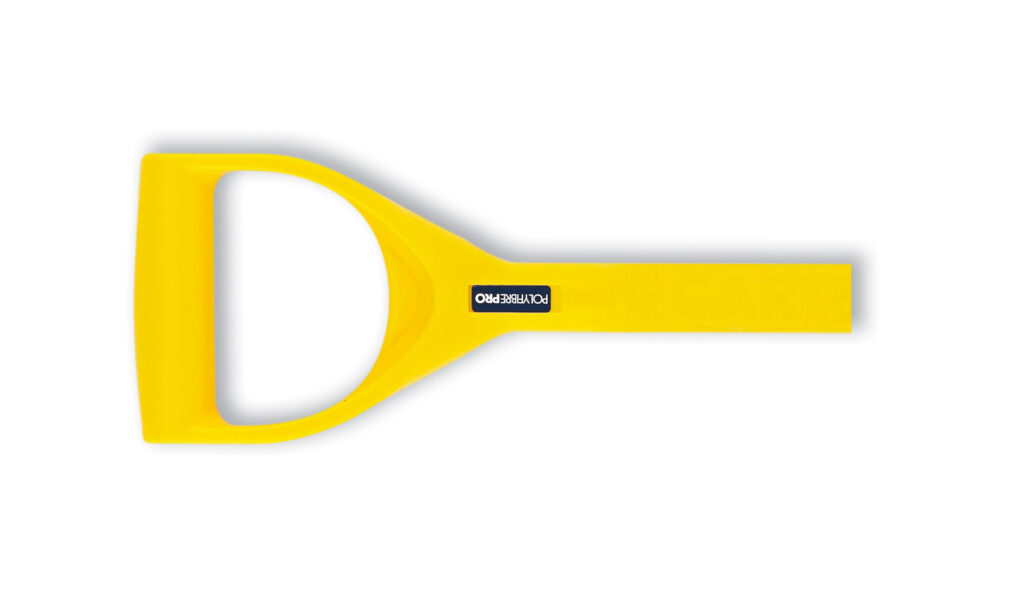

Polyfibre Pro YD

The Polyfibre style of handle is designed to offer the end user a high degree of fibreglass strength along with the comfort of a profile moulded PYD handle grip. The pultured fibreglass core is coated with an injection moulded polypropylene sheathing creating strength and stability.

Tubular Steel Metal YD

This type of handle is mainly used for Contractors and Heavy Industrial Tools. We weld our steel handles into the body of the shovel socket for extra strength and rigidity, producing a very strong and robust tool for digging.

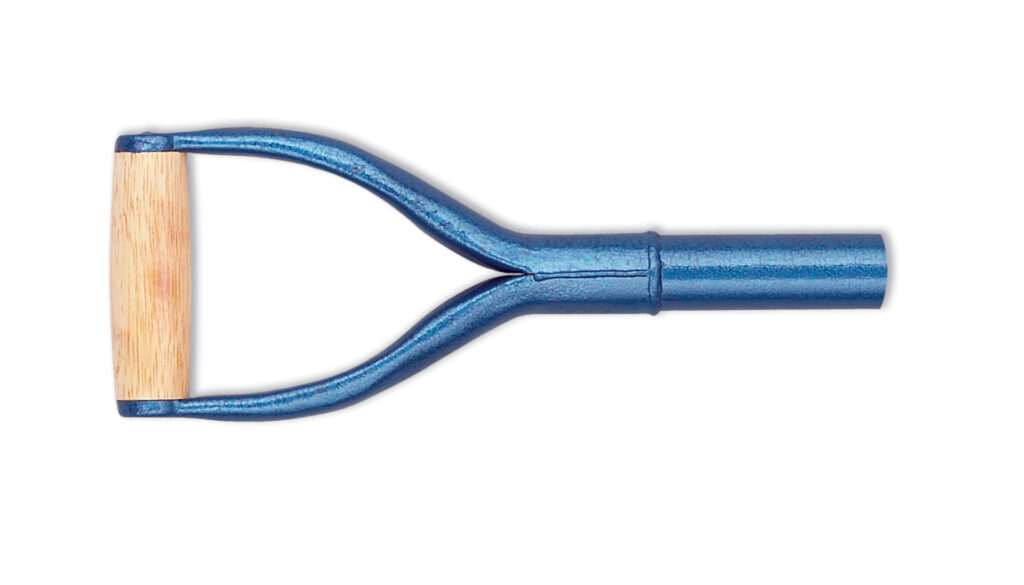

Metal YD Top

This metal YD grip is mainly used for Contractors and Heavy Industrial Tools. Manufactured from a tough steel frame and fitted with a robust wooden hilt and riveted to resist twisting. Extremely strong and can be fitted to wood, aluminium, steel or fibreglass shafts.

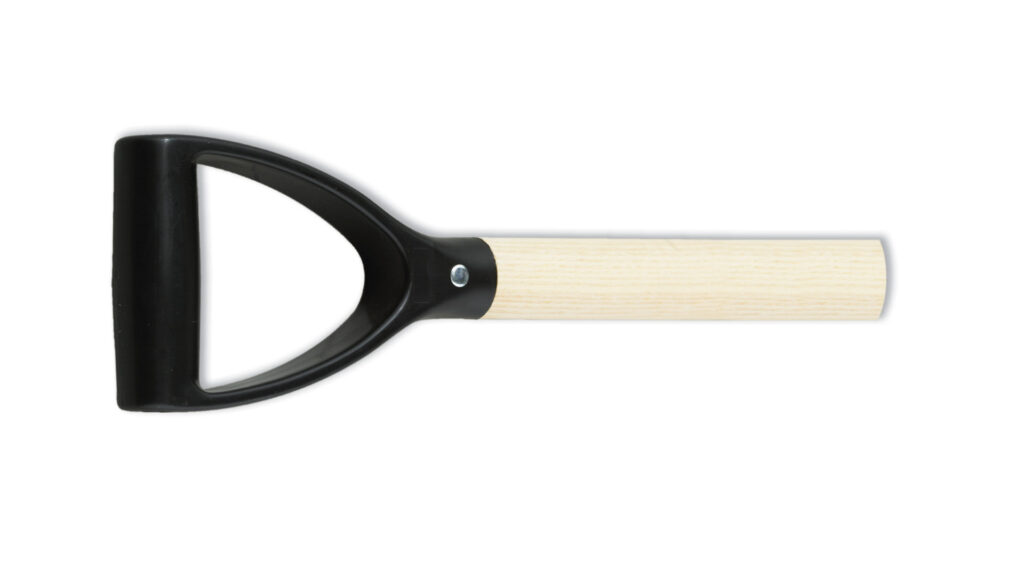

Polypropylene YD

This Y or D shaped grip is moulded to comfortably fit the hand, from high impact polypropylene. Normally fitted to wooden, aluminium or tubular shafts it is totally weatherproof and easily kept clean.

Polypropylene T Grip

This high impact moulded polypropylene T-Grip is normally fitted to lightweight tubular products. Contoured into a non-slip grip, it is easily kept clean and is totally weatherproof.

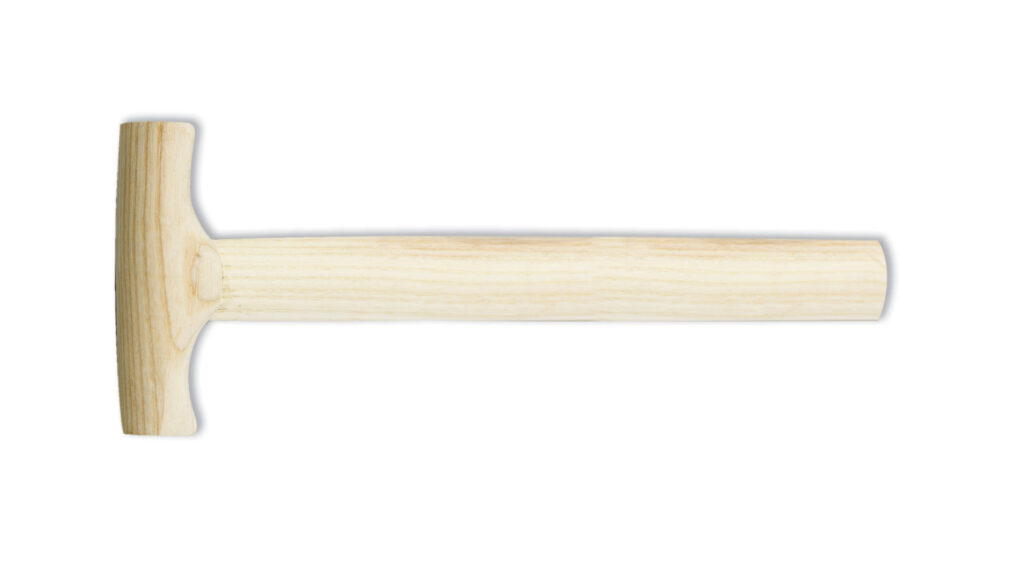

Shaped Crutch T

This is a traditional Ash T-Grip, having a sculptured hilt, ergonomically shaped to fit the palm of the hand. the grip and shaft are mortised, tenoned and waterproof glued into place. A staple then secures the grip firmly into place.

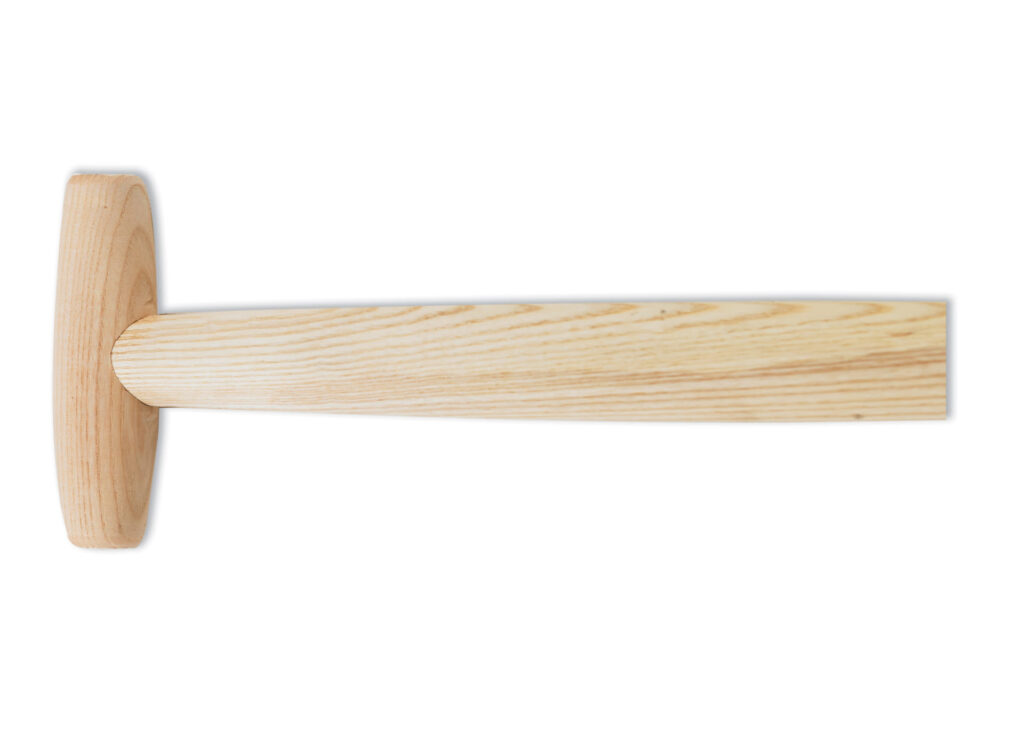

Barrel Crutch

This is a plainer and more economical type of T-Grip. The handle top is not as intricately contoured as the shaped grip, but being mortised, tenoned and glued, it does possess all the same strength characteristics.

Shovels Explained

Shovel

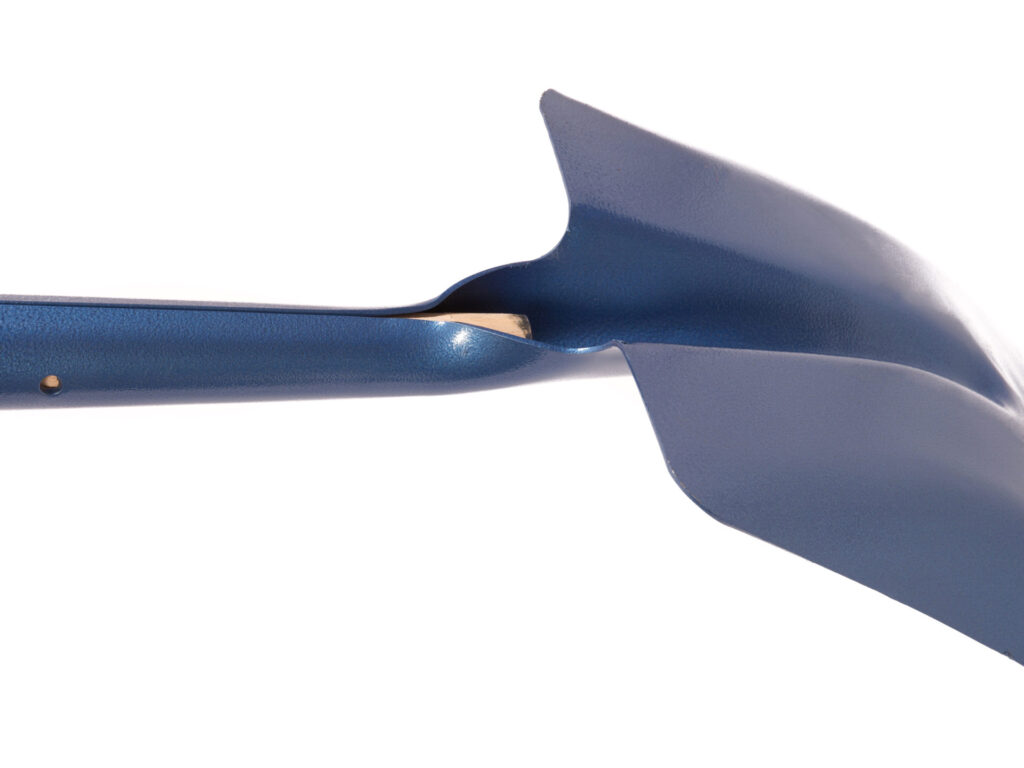

Open Socket

Open Socket shovels are used for moving loose earth, sand, gravel and grain etc. They are hot-pressed from pre-cut sheets of either hot rolled heavy gauge carbon steel or aluminium sheet. They are not primarily designed for digging or levering. This type of shovel is easily identified as open Socket by the fact the end of the handle can be seen protruding through the bottom of the pressed socket.

Shovels

Solid Socket Forged

Solid socket tools have their blades and sockets hot, double roll formed from one single piece of best quality steel. The socket is forged as an integral part of the blade (with NO welds) and this type of tool is readily identified by the fact that the handle fits into a ‘blind’ socket – this is the most popular range. Solid socket tools are prefered for heavy shovelling out, or back-filling trenches, mixing concrete, tarmac and ballast work. A range of handles are available in wood, steel, aluminium and fibreglass.
